PDX10S-SI User Guide

Last updated: 2023-03-09 PDF version

Quickstart

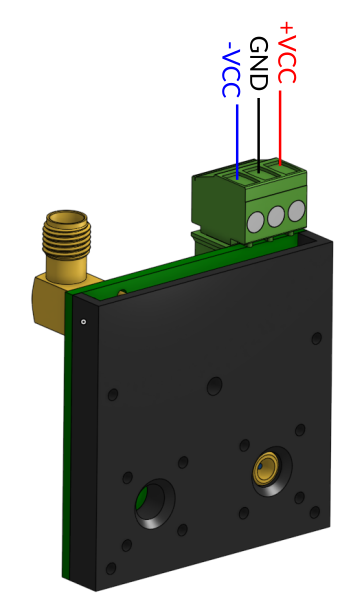

PDX10S-SI Si free-space photodetector user interface
PDX10S-SI user interface

  1. Supply +VCC pin with a voltage from 10.5 V to 13 V. Supply -VCC pin with a voltage from -9 V to -4 V.

  2. Illuminate the photodetector with a maximum of 3 mW optical power.

  3. The output is available on the SMA connector (50 Ω impedance).
