PD200T User Guide

Last updated: 2023-03-09 PDF version

Quickstart

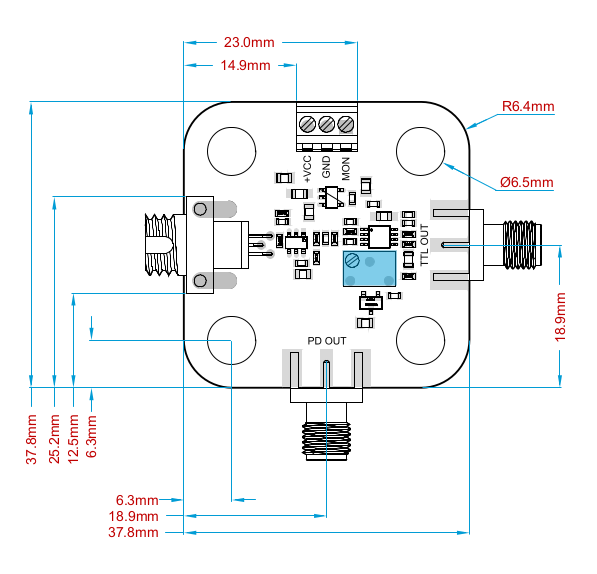

PD200T 200 MHz TTL-analog photodetector user interface
PD200T user interface
  1. Supply +VCC pin with a voltage between 3.7 V and 12 V. The board is regulated to 3.3 V internally. Using more than 3.7 V supplies increases power consumption without any significant improvement in supply noise rejection.

  2. Supply the photodetector with a maximum 2 mW optical power.

  3. The analog output is available on the SMA connector PD out (50 Ω impedance). The TTL output is available on the SMA connector TTL out (50 Ω impedance).

    Adjust the detection threshold with the potentiometer (blue). The threshold can be monitored on the MON pin.

PD200T 200 MHz TTL-analog photodetector functional diagram
PD200T functional diagram
